GW-CBH1

FEATURES

LED Technology—Tunable white Warm White&Natural White&Cold White light, or only one of them is viable too.
Three Modes—ON/OFF/AUTO are available
PIR Sensor—In Sensing mode, human body motion sensor works when brightness is lower than 6 lux.
Dimmable—press button to achieve 10-100% stepless dimming.
Removable battery: compliant with EU’s battery regulation

PRODUCT PARAMETER

Model Product Dimension Material Color Battery Luminous Flux Charging RA IP Lifespan LED QTY Color Temp Power PIR sensing distance
GW-CBH1 350*40*10mm ABS+PC+Aluminium Silver 3.7V 1000mAh 120lm 5V DC 1A >80 20 20000H 72 PCS SMD LED CCT3:3000K+4000K+6500K 2W 3-6M
GW-CBH1 400*40*10mm ABS+PC+Aluminium Silver 3.7V 1500mAh 150lm 5V DC 1A >80 20 20000H 92 PCS SMD LED CCT3:3000K+4000K+6500K 2.5W 3-6M
GW-CBH1 450*40*10mm ABS+PC+Aluminium Silver 3.7V 2200mAh 180lm 5V DC 1A >80 20 20000H 112 PCS SMD LED CCT3:3000K+4000K+6500K 3W 3-6M

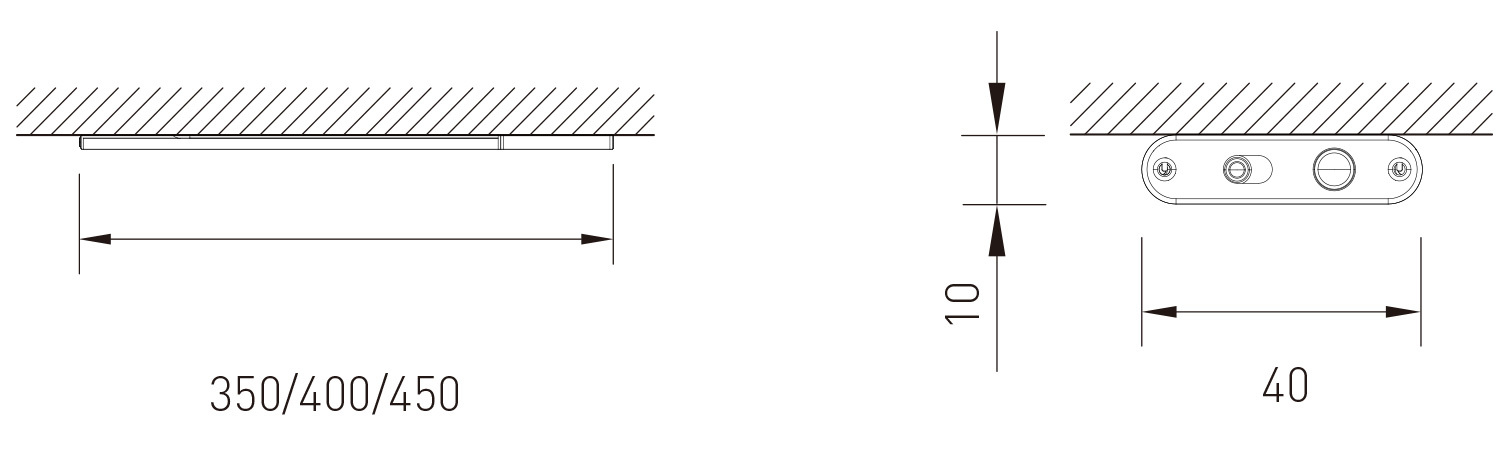

MOUNTING PROCEDURE
