GW-CBB4

FEATURES

LED Technology—Tunable white Warm White&Natural White&Cold White light, or only one of them is viable too.
Three Modes—ON/OFF/AUTO are available
PIR Sensor—In Sensing mode, human body motion sensor works when brightness is lower than 6 lux.
Dimmable—press button to achieve 10-100% stepless dimming.

PRODUCT PARAMETER

Model Product Dimension Material Color Battery Luminous Flux Charging RA IP Lifespan LED QTY Color Temp Power PIR sensing distance
GW-CBB4 300*40*10mm ABS+aluminium Silver 3.7V 1000mAh 60lm 5V DC 1A >80 20 20000H 2 PCS SMD LED CCT3:3000K+4000K+6500K 1W 3-6M
GW-CBB4 400*40*10mm ABS+aluminium Silver 3.7V 1500mAh 120lm 5V DC 1A >80 20 20000H 3 PCS SMD LED CCT3:3000K+4000K+6500K 2W 3-6M
GW-CBB4 600*40*10mm ABS+aluminium Silver 3.7V 2200mAh 150lm 5V DC 1A >80 20 20000H 5 PCS SMD LED CCT3:3000K+4000K+6500K 2.5W 3-6M
GW-CBB4 800*40*10mm ABS+aluminium Silver 3.7V 3000mAh 180lm 5V DC 1A >80 20 20000H 6 PCS SMD LED CCT3:3000K+4000K+6500K 3W 3-6M
GW-CBB4 1000*40*10mm ABS+aluminium Silver 3.7V 4400mAh 240lm 5V DC 1A >80 20 20000H 8 PCS SMD LED CCT3:3000K+4000K+6500K 4W 3-6M

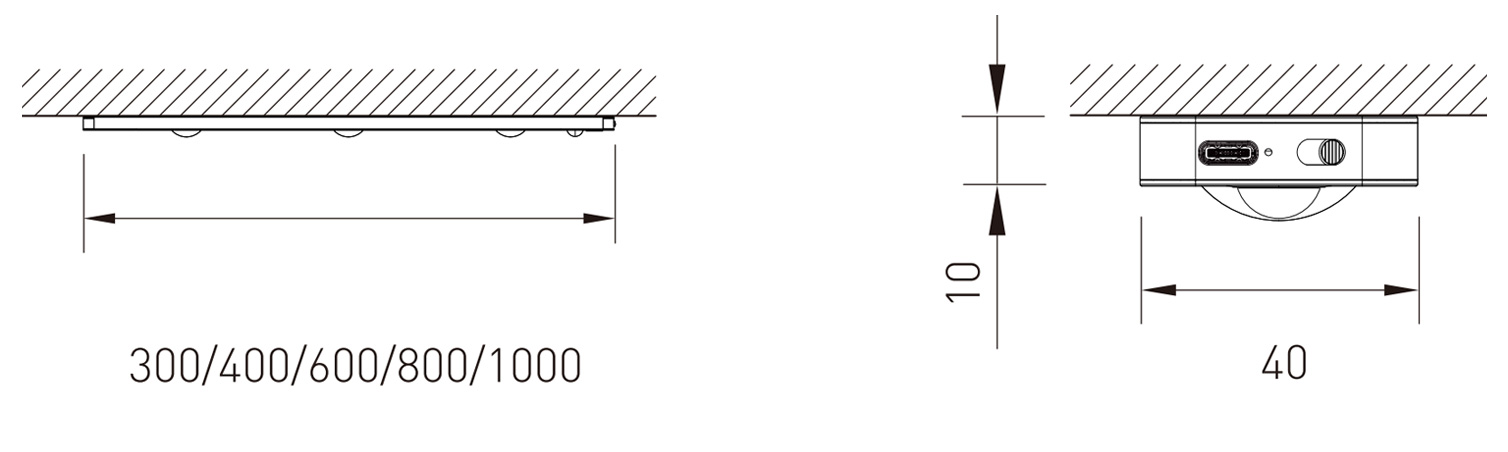

MOUNTING PROCEDURE
