FLORA SERIES

FEATURES

Full hood design.
Ultra-thin frameless design, achive super-large luminous surface, edge right angle design, Ultra-small R angle design.
The chassis is made of PC, the diffuser is made of PMMA.
realize quick connection and quick installation.

PRODUCT PARAMETER

Item NO. Voltage(V) Power(W) Liminous Efficacy
LM/W		 CCT CRI DF Warranty Dimension
(L*W*H)mm		 Cover IP Certificate Functional options Installation way
GW-CLFY1-018-G3-Y 220-240V 18 80 3000/4000/5000 ＞80 0.7 5 years Φ300*38 White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending
GW-CLFY1-024-G3-Y 220-240V 24 80 3000/4000/5000 ＞80 0.9 5 years Φ400*38 White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending
GW-CLFY1-040-G3-Y 220-240V 40 80 3000/4000/5000 ＞80 0.9 5 years Φ500*38 White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending

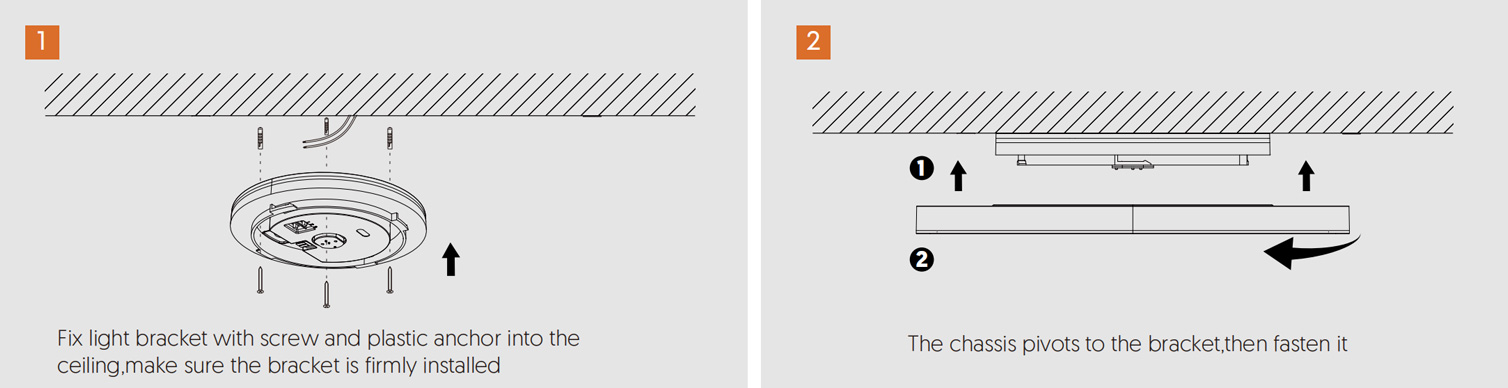

MOUNTING PROCEDURE
