CANDY SERIES

FEATURES

Minimalist style of design, Ultra-thin frameless.
The chassis is made of iron, the frame is made of aluminum profile, the diffuser is made of PMMA and PS.
Quick installation.
Size can be customized.

PRODUCT PARAMETER

Item NO. Voltage(V) Power(W) Liminous Efficacy
LM/W		 CCT CRI DF Warranty Dimension
(L*W*H)mm		 Cover IP Certificate Functional options Installation way
GW-CLC1-001-G1 220-240V 18 100 3000/4000/5000 ＞80 0.9 5 years Φ300*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket
GW-CLC1-001-G1 220-240V 24 100 3000/4000/5000 ＞80 0.9 5 years Φ400*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket
GW-CLC1-001-G1 220-240V 40 100 3000/4000/5000 ＞80 0.9 5 years Φ500*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket
GW-CLC1-001-G1 220-240V 40 100 3000/4000/5000 ＞80 0.9 5 years Φ600*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket
GW-CLC1-001-G1 220-240V 60 100 3000/4000/5000 ＞80 0.9 5 years Φ800*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket
GW-CLC1-001-G1 220-240V 80 100 3000/4000/5000 ＞80 0.9 5 years Φ1000*55 Black/White 40 CE/ROHS/ERP

CCT3
Double dial code
Silicon controlled Rectifier
DALI(DT6)

Ceiling/Suspending/Bracket

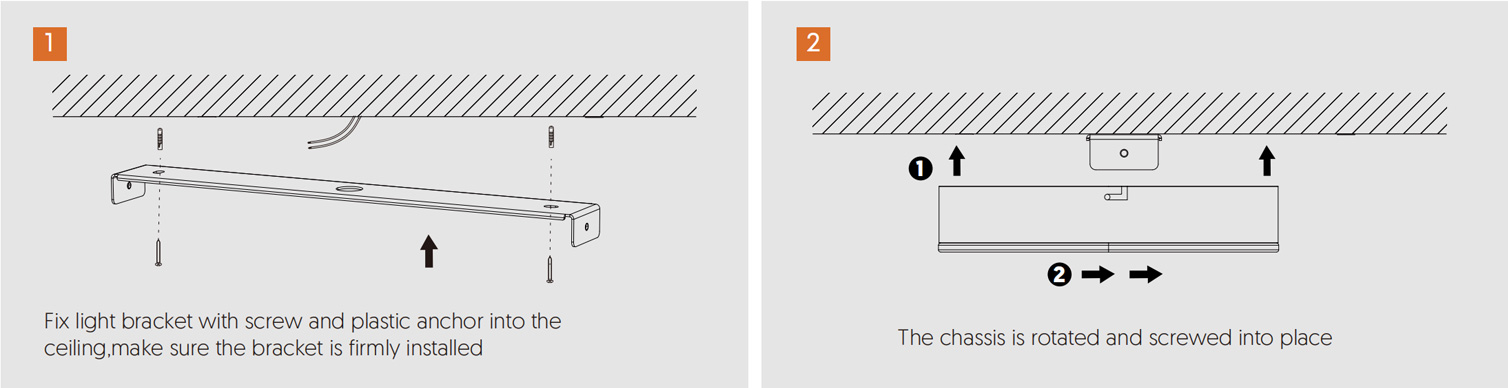

MOUNTING PROCEDURE
